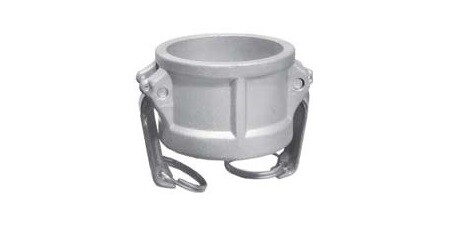

Camlock type DC Aluminium

Norm 2

MIL A-A-59326A

General material

Aluminium

Category

Dust cap

Coupling side type

Female

Material levers

Galvanized steel

Art. no.	IMPA code	General material	Working pressure (BAR)	Coupler size (inch/mm)	Seal coupling side	Weight	Stock	Price per pcs	Amount
Art. no. 4620073	IMPA code 352050	General material Aluminium	Working pressure (BAR) 16	Coupler size (inch/mm) 1/2" (DN13)	Seal coupling side NBR	Weight 0.08 kg	Stock 43	Price per pcs £3.50	Amount
Art. no. 4620074	IMPA code 352051	General material Aluminium	Working pressure (BAR) 16	Coupler size (inch/mm) 3/4" (DN19)	Seal coupling side NBR	Weight 0.1 kg	Stock 211	Price per pcs £2.92	Amount
Art. no. 4620075	IMPA code 352052	General material Aluminium	Working pressure (BAR) 18	Coupler size (inch/mm) 1" (DN25)	Seal coupling side NBR	Weight 0.13 kg	Stock 3008	Price per pcs £3.61	Amount
Art. no. 4620077	IMPA code 352053	General material Aluminium	Working pressure (BAR) 18	Coupler size (inch/mm) 11/4" (DN32)	Seal coupling side NBR	Weight 0.23 kg	Stock 179	Price per pcs £4.40	Amount
Art. no. 4620076	IMPA code 352054	General material Aluminium	Working pressure (BAR) 18	Coupler size (inch/mm) 11/2" (DN38)	Seal coupling side NBR	Weight 0.24 kg	Stock 66	Price per pcs £5.05	Amount
Art. no. 4620078	IMPA code 352055	General material Aluminium	Working pressure (BAR) 18	Coupler size (inch/mm) 2" (DN50)	Seal coupling side NBR	Weight 0.28 kg	Stock 77	Price per pcs £5.60	Amount
Art. no. 4620079	IMPA code 352056	General material Aluminium	Working pressure (BAR) 18	Coupler size (inch/mm) 21/2" (DN63)	Seal coupling side NBR	Weight 0.36 kg	Stock 140	Price per pcs £7.68	Amount
Art. no. 4620080	IMPA code 352057	General material Aluminium	Working pressure (BAR) 9	Coupler size (inch/mm) 3" (DN75)	Seal coupling side NBR	Weight 0.55 kg	Stock 264	Price per pcs £10.13	Amount
Art. no. 4620081	IMPA code 352058	General material Aluminium	Working pressure (BAR) 7	Coupler size (inch/mm) 4" (DN100)	Seal coupling side NBR	Weight 0.7 kg	Stock 8	Price per pcs £11.42	Amount
Art. no. 4620082	IMPA code 352059	General material Aluminium	Working pressure (BAR) 5	Coupler size (inch/mm) 5" (DN125)	Seal coupling side NBR	Weight 0.98 kg	Stock 13	Price per pcs £16.45	Amount
Art. no. 4620083	IMPA code 352060	General material Aluminium	Working pressure (BAR) 5	Coupler size (inch/mm) 6" (DN150)	Seal coupling side NBR	Weight 1.58 kg	Stock 101	Price per pcs £25.40	Amount

Inventory status

IN STOCK (delivery 1-3 workdays)

No stock (delivery time on request)

Description

Camlock Type DC (dustcap) aluminum couplings are popular components in various sectors due to their versatility and ease of use.
These couplings, also known as cam and groove couplings, are often used for quickly and safely sealing hoses and pipes.

The aluminum construction of Camlock Type DC couplings provides a lightweight yet durable solution.
This makes them particularly suitable for applications where weight is a concern, such as in the transportation and aerospace industries.
The Type DC coupling acts as a dust cap, preventing dirt and debris from entering the pipes or hoses when they are not in use.

A key advantage of aluminum Camlock Type DC couplings is their ease of use. They can be quickly and easily connected and disconnected by moving the cam arms up or down.
This makes them ideal for situations requiring rapid sealing. Additionally, the aluminum material offers a good balance between strength and corrosion resistance, contributing to their user-friendliness.

Camlock Type DC aluminum couplings are a reliable and efficient solution for sealing hoses and pipes in various industries.
Their lightweight nature, durability, and easy installation make them a popular choice for applications in the transportation and aerospace industries.
With various sizes available, these couplings can meet diverse needs, making them a versatile option for many applications.
